119955.00 LEE

Name: 119955.00 LEE
Brand: Leeson Electric
SKU: 119955.00 LEE
Availability: OutOfStock

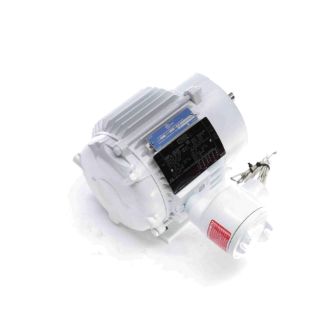

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

119955.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous-Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous-Duty Low Voltage, Explosion Proof AC Motors Special Features, 0.5 hp, 230/460 VAC, 1.6/0.8 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, EPNV Enclosure, 56CY Frame, 0.63 in Dia x 1.87 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 1.52 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 11.11 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed | USDA Approved

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	1.6/0.8 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.11 in L
Enclosure Type:	EPNV
Frame:	56CY
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.87 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	1.52 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
