11S FLNG 52MM 16X4.3MM KW LOV

Name: 11S FLNG 52MM 16X4.3MM KW LOV
Brand: Lovejoy
SKU: 11S FLNG 52MM 16X4.3MM KW LOV
Availability: OutOfStock

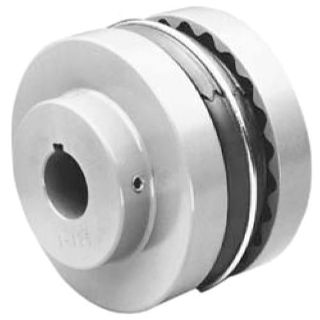

Lovejoy® S-Flex Endurance™ 68514459720 Type S Finished Bore Coupling Flange, 11S Coupling, 52 mm Dia Bore, 87.38 mm L Through Bore, 133.35 mm Dia Hub, Cast Iron

Manufacturer: Lovejoy

Manufacturer part number: 68514459720

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type S Finished Bore

Description

Lovejoy® S-Flex Endurance™ Coupling Flange, Type S Finished Bore, 11S Coupling, 52 mm Bore, 133.35 mm Diameter Hub, 28.7 mm Hub Length, 16 x 4.3 mm Keyway, 3600 rpm Maximum, 87.38 mm Length Through Bore, 1/2-13 Screw, Cast Iron

Standards

Features

S flanges are made of high strength cast iron and are bored to size for a slip fit on standard shafts
The S-type coupling consists of two flanges and one sleeve

Specifications

Bore Diameter:	52 mm
Country of Origin:	US
Coupling Size:	11S
Hub Diameter:	133.35 mm
Hub Length:	28.7 mm
Keyway Size:	16 x 4.3 mm
Length Through Bore:	87.38 mm
Material:	Cast Iron
Maximum Speed:	3600 rpm
Screw Size:	1/2-13
