Actual Product May Vary From Image

120-8 O/L MOR

Name: 120-8 O/L MOR
Brand: Regal Rexnord
SKU: 120-8 O/L MOR
Availability: OutOfStock

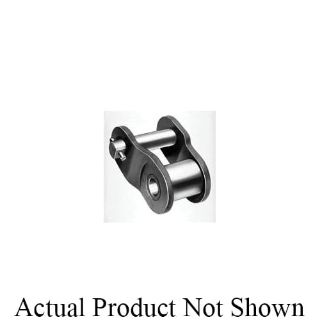

Morse® 323341 Standard Duty Offset Link With Cotter Pin, 120 Chain, 1-1/2 in Pitch, 14.483 in OAW, 0.437 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 323341

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Standard Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Standard Duty, 120 Chain, 1-1/2 in Pitch, 14.483 in Overall Width, 0.437 in Pin Dia, 1.4 in Link Plate Height, 0.187 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Specifications

Chain Size:	120
Country of Origin:	CN
Link Plate Height:	1.4 in
Link Plate Thickness:	0.187 in
Material:	Steel
Overall Width:	14.483 in
Pin Diameter:	0.437 in
Pitch:	1-1/2 in
