1200 1/1 E SP 10 HUB

Name: 1200 1/1 E SP 10 HUB
Brand: Hub City
SKU: 1200 1/1 E SP 10 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0220-20562

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style E

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

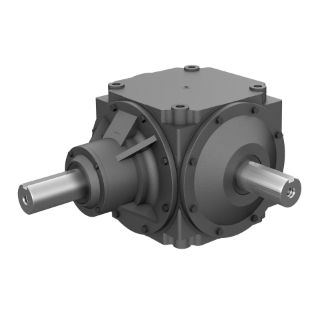

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style E, Series: 1200, 1:1 Gear Ratio, 380 hp, Shaft Input, Shaft Output, 2-1/2 in Dia x 5 in L Input, 2-1/2 in Dia Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 13685 in-lb, 16-7/8 in Centre Distance, 5/8 x 5/16 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 23-1/4 in D x 12-3/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	16-7/8 in
Dimensions:	23-1/4 in D x 12-3/8 in H
Efficiency:	97.5 %
Gear Ratio:	1:1
Horsepower:	380 hp
Input Maximum Speed:	1750 rpm
Input Size:	2-1/2 in Dia x 5 in L
Input Type:	Shaft
Keyway Size:	5/8 x 5/16 in Input
Lubrication Type:	Conventional Oil
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1750 rpm
Output Size:	2-1/2 in Dia
Output Type:	Shaft
Series:	1200
Torque Rating:	13685 in-lb
