120060.00 LEE

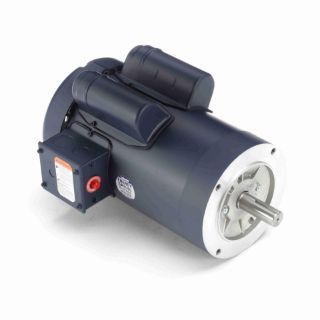

LEESON® 120060.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 115/230 VAC, 60 Hz, 1 ph Phase, 145TC Frame, 1740 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 120060.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,192.34

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 2 hp, 115/230 VAC, 18.4/9.2 A, 60 Hz Frequency, 1 ph ph, 1740 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 0.88 in Dia x 2.25 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 5.98 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.43 in L Dimensions

Application

Pumps, Conveyors, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:18.4/9.2 A
Application Type:Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:14.43 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:145TC
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:0.88 in Dia x 2.25 in L
Speed:1740 rpm
Temperature Rating:40 deg C
Torque Rating:5.98 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/230 VAC
