1201AL HWD

Name: 1201AL HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 1201AL HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

1201AL

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Heavy Duty Standard

Alternate Supplier #

Grainger - 9RA86

Description

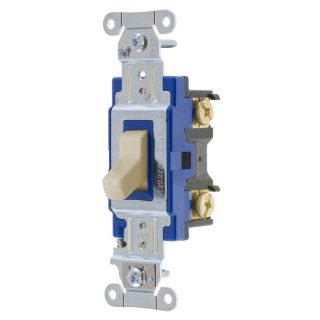

Wiring Device-Kellems Hubbell-Pro™ AC Toggle Switch, Heavy Duty Standard, 120/277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, Almond, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.18 in H x 1.49 in W x 1.75 in D Dimensions

Application

Industrial and General Purpose Applications

Standards

RoHS Compliant

Features

Steel, zinc plated bridge is corrosion resistant
Color coded by amperage makes inspection easy even when installed
Strip gauge for accurate wiring
Minimum 4.8 times rated current for 100 cycles overload
14 to 10 AWG solid and stranded copper wire size
1/2 hp at 120 VAC, 1.5 hp at 208 VAC, 2 hp at 240/277 VAC
Nylon toggle
Positive snap action

Specifications

Actuator:	Toggle
Amperage Rating:	15 A
Color:	Almond
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:	-40 to 75 deg C Operating Temperature
Material:	Nylon/Thermoplastic
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	4155 W
Terminal Type:	Back/Side Wire
Voltage Rating:	120/277 VAC
