1201B HWD

Name: 1201B HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 1201B HWD
Price: 5.77 USD
Availability: OutOfStock

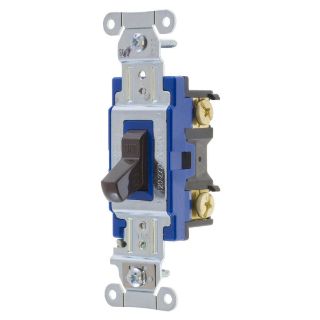

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

1201B

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$5.77 / EA

Description

Brand Name

Wiring Device-Kellems

Type

General Purpose Heavy Duty Standard

Alternate Supplier #

Grainger - 1XC15
Fastenal - 0731711

Description

Wiring Device-Kellems Hubbell-PRO™ Toggle Switch, General Purpose Heavy Duty Standard, 120 to 277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in

Application

Industrial and General Purpose Applications

Standards

RoHS Compliant | CSA Certified | UL94 V-2 Flammability Rating | UL 20 | Federal Specification W-S-896

Features

Steel, zinc plated bridge is corrosion resistant
Color coded by amperage makes inspection easy even when installed
Strip gauge for accurate wiring
Minimum 4.8 times rated current for 100 cycles overload
14 to 10 AWG solid and stranded copper wire size
1/2 hp at 120 VAC, 1.5 hp at 208 VAC, 2 hp at 240/277 VAC
Nylon toggle
Positive snap action

Specifications

Actuator:	Toggle
Amperage Rating:	15 A
Color:	Brown
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:	-40 to 75 deg C
Material:	Thermoplastic
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	2 hp, 4155 W
Terminal Type:	Back/Side Wire
Voltage Rating:	120 to 277 VAC
