Actual Product May Vary From Image

1202-TVH FAG

Name: 1202-TVH FAG
Brand: INA
SKU: 1202-TVH FAG
Price: 58.12 USD
Availability: OutOfStock

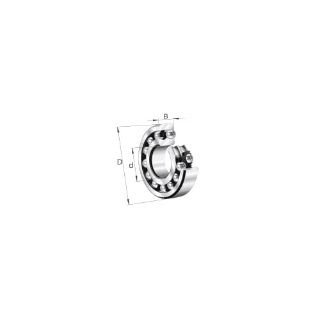

FAG 1202-TVH 12 Series Self-Aligning Ball Bearing, 15 mm Dia Bore, 35 mm OD, 2 Rows, 11 mm W, 7700 N Dynamic/1730 N Static/108 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 1202-TVH

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$58.12

Qty:

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 12 Series, 15 mm Bore Dia, 35 mm Outside Dia, 2 Rows, 11 mm W, Open Closure, 7700 N Dynamic/1730 N Static/108 N Fatigue, Polyamide 66 Cage, 23800 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bore Diameter:	15 mm
Cage Material:	Polyamide 66
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	7700 N Dynamic/1730 N Static/108 N Fatigue
Maximum Speed:	23800 rpm
Number of Rows:	2
Outside Diameter:	35 mm
Series:	12 Series
Temperature Rating:	120 deg C
Width:	11 mm
