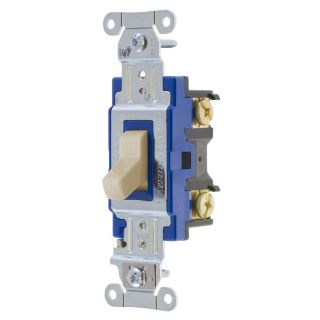

Actual Product May Vary From Image

1203AL HWD

Name: 1203AL HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 1203AL HWD
Availability: OutOfStock

Wiring Device-Kellems Hubbell-Pro™ 1203AL 3-Way Heavy Duty Standard AC Toggle Switch, 120/277 VAC, 15 A, 2 hp, 4155 W Power Rating, 2-Position/SPDT Contact

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 1203AL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Way Heavy Duty Standard

Description

Wiring Device-Kellems Hubbell-Pro™ AC Toggle Switch, 3-Way Heavy Duty Standard, 120/277 VAC, 15 A, 2 hp, 4155 W Power, 2-Position/SPDT Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, Almond, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.18 in H x 1.49 in W x 1.75 in D Dimensions

Application

Industrial and General Purpose Applications

Standards

RoHS Compliant

Features

Steel, zinc plated bridge is corrosion resistant
Color coded by amperage makes inspection easy even when installed
Strip gauge for accurate wiring
Minimum 4.8 times rated current for 100 cycles overload
14 to 10 AWG solid and stranded copper wire size
1/2 hp at 120 VAC, 1.5 hp at 208 VAC, 2 hp at 240/277 VAC
Nylon toggle
Positive snap action

Specifications

Actuator:	Toggle
Amperage Rating:	15 A
Color:	Almond
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:	-40 to 75 deg C Operating Temperature
Material:	Nylon/Thermoplastic
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	2 hp, 4155 W
Terminal Type:	Back/Side Wire
Voltage Rating:	120/277 VAC
