1206-TVH FAG

Name: 1206-TVH FAG
Brand: INA
SKU: 1206-TVH FAG
Price: 71.51 USD
Availability: OutOfStock

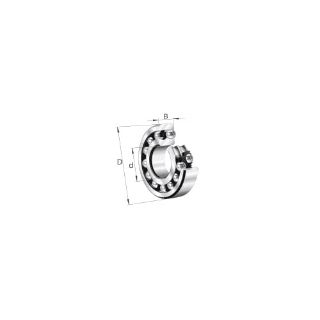

FAG 1206-TVH 12 Series Self-Aligning Ball Bearing, 30 mm Dia Bore, 62 mm OD, 2 Rows, 16 mm W, 15900 N Dynamic/4600 N Static/285 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 1206-TVH

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$71.51

Qty:

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 12 Series, 30 mm Bore Dia, 62 mm Outside Dia, 2 Rows, 16 mm W, Open Closure, 15900 N Dynamic/4600 N Static/285 N Fatigue, Polyamide 66 Cage, 13100 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bore Diameter:	30 mm
Cage Material:	Polyamide 66
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	15900 N Dynamic/4600 N Static/285 N Fatigue
Maximum Speed:	13100 rpm
Number of Rows:	2
Outside Diameter:	62 mm
Series:	12 Series
Temperature Rating:	120 deg C
Width:	16 mm
