120BTB13H MSG

Name: 120BTB13H MSG
Brand: Martin Sprocket & Gear
SKU: 120BTB13H MSG
Price: 232.81 USD
Availability: OutOfStock

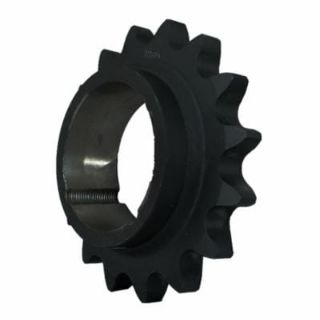

Martin Saber Tooth® 120BTB13H Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 6.986 in OD, #120 Chain, 13 Teeth, 1-1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 120BTB13H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$232.81

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 6.986 in Outside Dia, #120 Chain, 13 Teeth, 1-1/2 in Pitch, 6.268 in, 4-1/4 in Hub Dia, 1-3/4 in Length Through Bore, 2517 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	2517 Taper Lock
Chain Size:	#120
Country of Origin:	US
Hub Diameter:	4-1/4 in
Length Through Bore:	1-3/4 in
Material:	Steel
Number of Teeth:	13
Outside Diameter:	6.986 in
Pitch:	1-1/2 in
Pitch Diameter:	6.268 in
