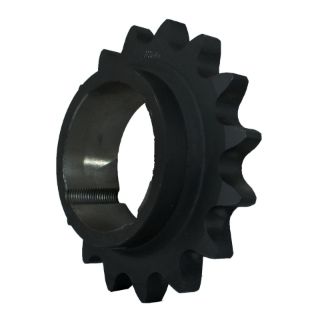

Actual Product May Vary From Image

120BTB26 MSG

Name: 120BTB26 MSG
Brand: Martin Sprocket & Gear
SKU: 120BTB26 MSG
Price: 480.64 USD
Availability: OutOfStock

Martin 120BTB26 Type B Single Strand Welded Bushed Roller Chain Sprocket, 0.938 to 3 in Dia Bore, 13.254 in OD, #120 Chain, 26 Teeth, 1-1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 120BTB26

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$480.64

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Welded Bushed

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head setscrews instead of bolts.

Martin Roller Chain Sprocket, Type B Single Strand Welded Bushed, 0.938 to 3 in Bore, 13.254 in OD, #120 Chain, 26 Teeth, 1-1/2 in Pitch, 12.4443 in Pitch Diameter, 5-1/4 in Diameter Hub, 2 in Length Through Bore, TB 3020 Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturer's taper bushings
Manufactured of high carbon steel

Specifications

Bore Diameter:	0.938 to 3 in
Bushing Type:	TB 3020
Chain Size:	#120
Hub Diameter:	5-1/4 in
Length Through Bore:	2 in
Material:	Steel
Number of Teeth:	26
Outside Diameter:	13.254 in
Pitch:	1-1/2 in
Pitch Diameter:	12.4443 in
