Home / 120C42 BRN

120C42 BRN

Product Details

Manufacturer:
Manufacturer part number:
3402187
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Browning®

Type

Single Strand Minimum Bore Type C

Description

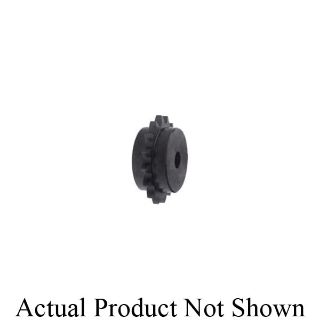

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type C, 4-1/2 in Bore Dia, 20.92 in Outside Dia, #120 Chain, 42 Teeth, 1-1/2 in Pitch, 20.072 in, 6-5/8 in Hub Dia, 3 in Length Through Bore, Steel

Application

Agitators, Crushing Machinery, Paper Industry Machinery, Fan and Blowers, Pumps, Mixers, Mills, Screens and Textile Industries

Standards

ANSI Specified

Features

  • Larger hub diameter allows larger bore capacity
  • Maximum bore shown will accommodate standard keyways and setscrews over keyway
  • Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
  • For use with 1-1/2 in pitch ANSI chain

Specifications

Bore Diameter:4-1/2 in
Chain Size:#120
Country of Origin:CN
Hub Diameter:6-5/8 in
Length Through Bore:3 in
Material:Steel
Number of Teeth:42
Outside Diameter:20.92 in
Pitch:1-1/2 in
Pitch Diameter:20.072 in
