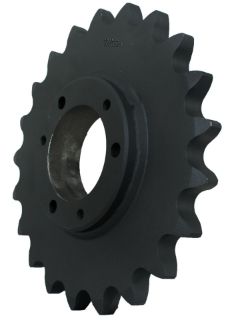

Actual Product May Vary From Image

120E17 MSG

Name: 120E17 MSG
Brand: Martin Sprocket & Gear
SKU: 120E17 MSG
Price: 321.13 USD
Availability: OutOfStock

Martin 120E17 Type B1 Single Strand Stock Bore Welded Roller Chain Sprocket, 3-1/2 in Dia Bore, 8.924 in OD, #120 Chain, 17 Teeth, 1-1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 120E17

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$321.13

Qty:

Product Details

Brand Name

Martin

Type

Type B1 Single Strand Stock Bore Welded

Description

QD® (Quick Detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type B1 Single Strand Stock Bore Welded, 3-1/2 in Bore, 8.924 in OD, #120 Chain, 17 Teeth, 1-1/2 in Pitch, 8.163 in Pitch Diameter, 6-1/4 in Diameter Hub, 1/2-13 NC Screw, 2-5/8 in Length Through Bore, QD® E Bushing, Steel

Standards

Features

Without hardened teeth

Specifications

Bore Diameter:	3-1/2 in
Bushing Type:	QD® E
Chain Size:	#120
Country of Origin:	US
Hub Diameter:	6-1/4 in
Length Through Bore:	2-5/8 in
Material:	Steel
Number of Teeth:	17
Outside Diameter:	8.924 in
Pitch:	1-1/2 in
Pitch Diameter:	8.163 in
Screw Size:	1/2-13 NC
