120E18 MSG

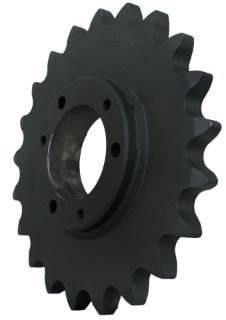

Picture of 120E18 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
120E18
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$341.01 / EA

Description

Brand Name

Martin

Type

Type B1 Single Strand Stock Bore Welded

Description

QD® (Quick Detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
Martin Roller Chain Sprocket, Type B1 Single Strand Stock Bore Welded, 3-1/2 in Bore, 9.407 in OD, #120 Chain, 18 Teeth, 1-1/2 in Pitch, 8.638 in Pitch Diameter, 6-1/4 in Diameter Hub, 1/2-13 NC Screw, 2-5/8 in Length Through Bore, QD® E Bushing, Steel

Standards

ANSI B29.1 - 1975 | CEMA Standard | ECCN: EAR99 | MPTA Approved | NIBA Certified | PTDA Approved

Features

  • Without hardened teeth
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bore Diameter:3-1/2 in
Bushing Type:QD® E
Chain Size:#120
Country of Origin:US
Hub Diameter:6-1/4 in
Length Through Bore:2-5/8 in
Material:Steel
Number of Teeth:18
Outside Diameter:9.407 in
Pitch:1-1/2 in
Pitch Diameter:8.638 in
Screw Size:1/2-13 NC
