120TB80 BRN

Name: 120TB80 BRN
Brand: Regal Rexnord
SKU: 120TB80 BRN
Availability: OutOfStock

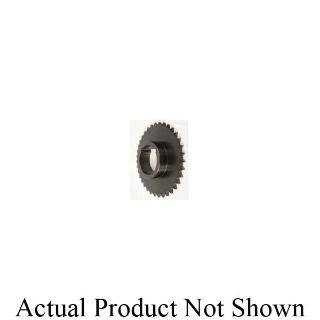

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

3789104

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 15/16 in Bore Dia, 39.095 in Outside Dia, #120 Chain, 80 Teeth, 1 in Pitch, 38.207 in, 8.015 in Hub Dia, 3-1/2 in Length Through Bore, Type 4 Taper Bore Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Compact design
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
1-11/16 in/ft taper
Setscrew or cap screw acts as external key
Flush fit, less space on shaft
No protruding flange
For use with 1 in pitch ANSI chain

Specifications

Bore Diameter:	15/16 in
Bushing Type:	Type 4 Taper Bore
Chain Size:	#120
Country of Origin:	CN
Hub Diameter:	8.015 in
Length Through Bore:	3-1/2 in
Material:	Steel
Number of Teeth:	80
Outside Diameter:	39.095 in
Pitch:	1 in
Pitch Diameter:	38.207 in
