121004 LIT

Name: 121004 LIT
Brand: Littelfuse
SKU: 121004 LIT
Availability: OutOfStock

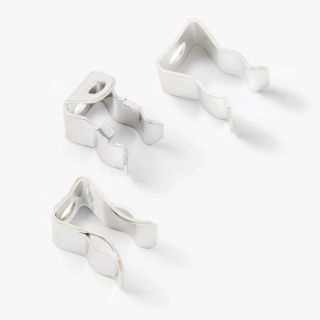

Littelfuse® 121004 45 deg Ear Style Solder Lug Fast Acting Non-Indicating Fuse Clip, 1/4 in Dia Fuse, Rivet/Eyelet Mount, Beryllium Copper, Silver Plated

Manufacturer: Littelfuse

Manufacturer part number: 121004

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Type

45 deg Ear Style Solder Lug Fast Acting Non-Indicating

Description

Littelfuse® Fuse Clip, 45 deg Ear Style Solder Lug Fast Acting Non-Indicating, Series: 121, 1/4 in Diameter Fuse, Rivet/Eyelet Mounting, 0.131 in Mounting Hole, Beryllium Copper, Silver Plated, 0.31 in W x 0.56 in D x 0.47 in H Dimensions

Application

For 3AG/3AB fuse applications

Standards

RoHS Compliant | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Specifications

Country of Origin:	MX
Dimensions:	0.31 in W x 0.56 in D x 0.47 in H
Finish:	Silver Plated
Fuse Diameter:	1/4 in
Material:	Beryllium Copper
Mounting Hole Size:	0.131 in
Mounting Type:	Rivet/Eyelet
Series:	121
