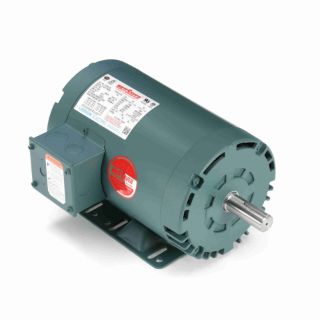

Actual Product May Vary From Image

121004.00 LEE

Name: 121004.00 LEE
Brand: Leeson Electric
SKU: 121004.00 LEE
Price: 742.27 USD
Availability: OutOfStock

LEESON® 121004.00 Type TD Continuous Duty AC Motor, DP Enclosure, 1-1/2 hp, 208 to 230/460 VAC, 50/60 Hz, 140 Frame, 1750/1450 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121004.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$742.27

Qty:

Product Details

Brand Name

LEESON®

Type

Type TD Continuous Duty

Description

LEESON® AC Motor, Type TD Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, B NEMA Design Special Features, 1-1/2 hp, 208 to 230/460 VAC, 5.2 to 5.4/2.7/5.8 to 6/3 A, 50/60 Hz Frequency, 1750/1450 rpm Speed, 1 Speed, DP Enclosure, 140 Frame, 7/8 in Dia Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 12.62 in L Dimensions

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, B NEMA Design

Specifications

Amperage Rating:	5.2 to 5.4/2.7/5.8 to 6/3 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.62 in L
Enclosure Type:	DP
Frame:	140
Frequency Rating:	50/60 Hz
Horsepower:	1-1/2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	7/8 in Dia
Speed:	1750/1450 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
