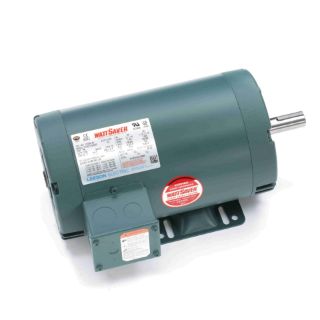

Actual Product May Vary From Image

121005.00 LEE

Name: 121005.00 LEE
Brand: Leeson Electric
SKU: 121005.00 LEE
Price: 269.21 USD
Availability: OutOfStock

LEESON® Ultimate e® 121005.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 2 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 1745 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121005.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$269.21

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 2 hp, 208 to 230/460 VAC, 6 to 5.8/2.9 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, 1 Speed, DP Enclosure, 145T Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 6 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.69 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Designed for belted loads
High starting and breakdown torque
High efficiency copper windings
Dual rotation
Shielded ball bearings for direct coupled applications
Squirrel cage induction run

Specifications

Amperage Rating:	6 to 5.8/2.9 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.69 in L
Enclosure Type:	DP
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
