121039.00 LEE

Name: 121039.00 LEE
Brand: Leeson Electric
SKU: 121039.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

121039.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Type AC Continuous Duty

Description

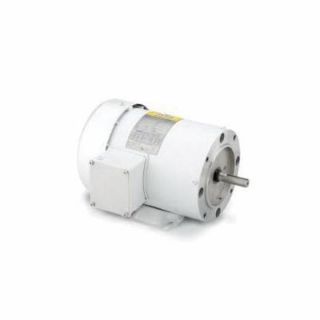

LEESON® AC Motor, Type AC Continuous Duty, Fan & Blower Motors Application, C Face With Base, 85.5% Full Load Efficiency Special Features, 2 hp, 208 to 230/460 VAC, 4.8 A, 50/60 Hz Frequency, 3600 rpm Speed, 1 Speed, TENV Enclosure, 145TC Frame, 7/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 13.12 in L Dimensions

Application

For chemical processing, pharmaceutical plants and the beverage and brewing industries

Standards

CE Marked | CSA File No. LR2025 | UL File No. E49747 | USDA Approved

Features

C Face With Base, 85.5% Full Load Efficiency

Specifications

Amperage Rating:	4.8 A
Application Type:	Fan & Blower Motors
Bearing Type:	Ball
Dimensions:	13.12 in L
Enclosure Type:	TENV
Frame:	145TC
Frequency Rating:	50/60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	7/8 in Dia
Speed:	3600 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
