121180.00 LEE

Name: 121180.00 LEE
Brand: Leeson Electric
SKU: 121180.00 LEE
Price: 1,111.24 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

121180.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,111.24 / EA

Description

Brand Name

LEESON®

Type

Continuous Duty

Description

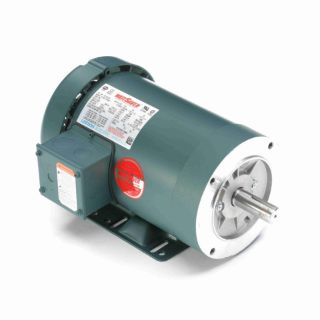

LEESON® AC Motor, Continuous Duty, 1-1/2 hp, 208 to 230/460 VAC, 5.6 A, 50/60 Hz, 3 ph, 1800 rpm, 1 Speed, Totally Enclosed Fan Cooled, 145TC Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.149, Ball Bearing, Foot Rigid Mount, Insulation Class: Class F, Rolled Steel, 13.75 in L x 8.64 in W x 7.32 in H

Standards

CSA Certified | UL Listed | UL Recognized

Features

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
Class B or F Insulation protects motor for a maximum temperature rating
Permanently lubricated, double-sealed bearings extend the lifetime of the motor
Continuous duty cycle design allows maximum operation at the rated power specifications
Operational at 208-230/460 V at 60Hz.

Specifications

Amperage Rating:	5.6 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.75 in L x 8.64 in W x 7.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	50/60 Hz
Horsepower:	1-1/2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Foot Rigid
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	7/8 in Dia
Speed:	1800 rpm
Voltage Rating:	208 to 230/460 VAC
