121277.00 LEE

Name: 121277.00 LEE
Brand: Leeson Electric
SKU: 121277.00 LEE
Price: 238.31 USD
Availability: OutOfStock

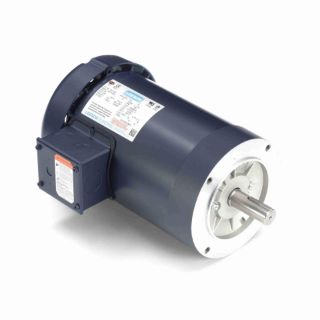

LEESON® 121277.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 220/380/440 VAC, 50 Hz, 3 ph Phase, 145TC Frame, 1440 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121277.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$238.31

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 2 hp, 220/380/440 VAC, 6.3/3.65/3.15 A, 50 Hz Frequency, 3 ph ph, 1440 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 7.2 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.42 in L Dimensions

Application

Pumps, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Torque exceed NEMA performance for design B motors

Specifications

Amperage Rating:	6.3/3.65/3.15 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.42 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	50 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1440 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.2 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	220/380/440 VAC
