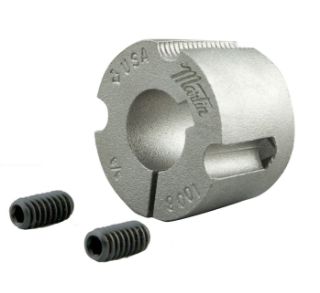

Actual Product May Vary From Image

1215 15/16 MSG

Name: 1215 15/16 MSG
Brand: Martin Sprocket & Gear
SKU: 1215 15/16 MSG
Price: 22.45 USD
Availability: OutOfStock

BUSHING TB

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 1215 15/16

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$22.45

Qty:

Product Details

Description

TB Bushings are designed for flush mounting and do not have a flange.

Features

For use with Taper Bushed parts. Tolerances meet or exceed industry standards. Precise machining and processes ensure consistent finish and high quality. Interchangeable with other manufacturers’ taper bushings.

Specifications

Barrel Diameter Large End:	1.875
Barrel Length Total:	1.5
Barrel Taper:	8 DEGREE
Bushing Bore Type:	STANDARD
Bushing Key Seat:	1/4 X 1/8
Bushing Number:	1215
Bushing Split:	Yes
Bushing Style:	TAPER BUSHING
Bushing/Cap Screw Thread:	UNC
Cap Screw Bolt Circle:	1.75
Cap Screw Size:	3/8-16 X 5/8
Dimensions UOM:	Inches
Flange Diameter:	NONE
Flange Split:	No
Flange Thickness:	NONE
Keyway Standard:	ANSI STANDARD
Length Thru Bore Total LTB of Bushing:	1.5
Material:	STEEL
Max Bore with Full Keyway:	1.25
Max Bore with Shallow Key:	1.25
Mounting Options:	STANDARD
MST Bushing type:	NONE
MST External Keyway size:	NONE
Number of Mounting Cap Screw:	2
Package Contents:	(1) INSTR SHEET IS-MTB-2 ,(2) SETSCREWS 24C40KSO
Set Screw Size:	3/8
Shaft Key Seat:	1/4 X 1/8
Stock Min Bore Size:	0.9375
Stocked Finished Bore:	0.9375
Storage Dimension Height:	1.6875
Storage Dimension Length:	2.125
Storage Dimension Width:	2.125
