Actual Product May Vary From Image

1215-1D UST

Name: 1215-1D UST
Brand: US Tsubaki
SKU: 1215-1D UST
Price: 25.27 USD
Availability: OutOfStock

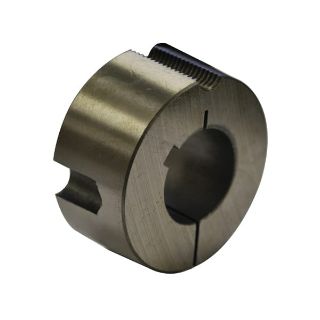

Tsubaki® 1215-1D Type 1215 Taper-Lock® Bushing, 1-1/4 in Dia Bore, 1-7/8 in Dia Barrel, 1-1/2 in OAL, Steel

Manufacturer: US Tsubaki

Manufacturer part number: 1215-1D

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$25.27

Qty:

Product Details

Brand Name

Tsubaki®

Type

Type 1215

Description

Tsubaki® Taper-Lock® Bushing, Type 1215, 1-1/4 in Bore Dia, 1-7/8 in Barrel Dia, 8 deg Taper, 1-3/4 in Bolt Circle, 2 Bolt Holes, 3/8 x 5/8 in Screw, 3550 in-lb, For Use With: Sprockets 101, 1-1/2 in Overall Length, 1/4 in W x 1/8 in H Keyway, Steel

Standards

ANSI Specified

Features

Standard keyway in hub

Specifications

Barrel Diameter:	1-7/8 in
Bolt Circle Diameter:	1-3/4 in
Bore Diameter:	1-1/4 in
Country of Origin:	CN
Keyway Size:	1/4 in W x 1/8 in H
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	1-1/2 in
Screw Size:	3/8 x 5/8 in
Suitable For Use With:	Sprockets 101
Taper:	8 deg
Torque Rating:	3550 in-lb
