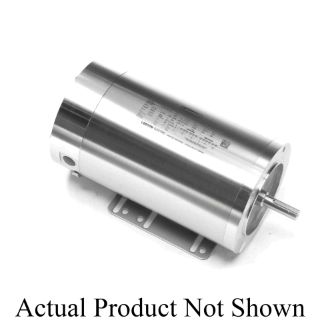

Picture of 121622.00 LEE
Actual Product May Vary From Image

121622.00 LEE

LEESON® Washguard® 121622.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 145TC Frame, 1740 rpm Speed, C-Face/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 121622.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$717.36

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Capacitor Start Motors, Washdown Duty Motors Special Features, 1.5 hp, 115/208 to 230 VAC, 14.8/7.8 to 7.4 A, 60 Hz Frequency, 1 ph ph, 1740 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 0.88 in Dia x 2.25 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.87 in L x 7.21 in H Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA LR33543 | UL E57948

Features

Capacitor Start Motors, Washdown Duty Motors

Specifications

Amperage Rating:14.8/7.8 to 7.4 A
Bearing Type:Ball
Country of Origin:US
Dimensions:14.87 in L x 7.21 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:145TC
Frequency Rating:60 Hz
Horsepower:1.5 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face/Rigid Base
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:0.88 in Dia x 2.25 in L
Speed:1740 rpm
Temperature Rating:40 deg C
Torque Rating:4.5 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
