121915.00 LEE

Name: 121915.00 LEE
Brand: Leeson Electric
SKU: 121915.00 LEE
Price: 1,474.65 USD
Availability: OutOfStock

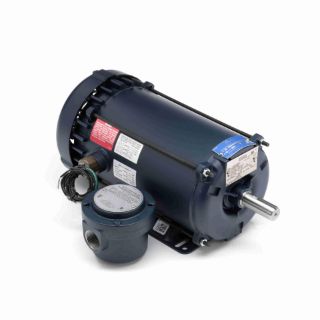

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

121915.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,474.65 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous Duty Low Voltage, Special Features: Explosion Proof AC Motors, 1.5 hp, 230/460 VAC, 4.6/2.3 A, 60 Hz, 3 ph, 1755 rpm, 1 Speed, EPFC, 145T Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.5 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 15 in L x 8.2 in W x 7.35 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	4.6/2.3 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	15 in L x 8.2 in W x 7.35 in H
Enclosure Type:	EPFC
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1755 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
