Actual Product May Vary From Image

121919.00 LEE

Name: 121919.00 LEE
Brand: Leeson Electric
SKU: 121919.00 LEE
Price: 2,244.00 USD
Availability: OutOfStock

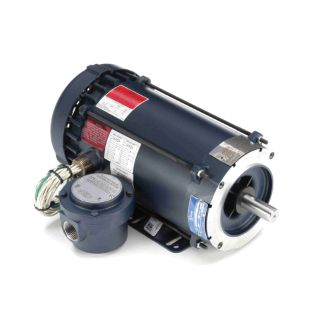

LEESON® 121919.00 4-Pole Continuous Duty Low Voltage AC Motor With Conduit Box, EPFC Enclosure, 1 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 143TC Frame, 1765 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121919.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,244.00

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous Duty Low Voltage, Special Features: Explosion Proof AC Motors, 1 hp, 230/460 VAC, 3.3/1.65 A, 60 Hz, 3 ph, 1765 rpm, 1 Speed, EPFC, 143TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 3 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 16 in L x 8.2 in W x 7.32 in H

Application

Commercial and Industrial Applications

Standards

NEC 500 | NFPA 497M

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	3.3/1.65 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	16 in L x 8.2 in W x 7.32 in H
Enclosure Type:	EPFC
Frame:	143TC
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1765 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
