Actual Product May Vary From Image

121968.00 LEE

Name: 121968.00 LEE
Brand: Leeson Electric
SKU: 121968.00 LEE
Price: 1,098.23 USD
Availability: OutOfStock

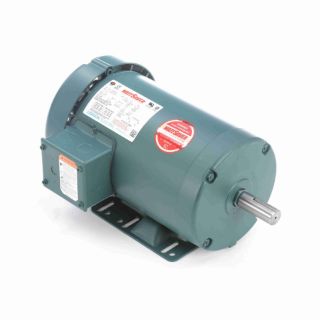

LEESON® Ultimate e® 121968.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 3490 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121968.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,098.23

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 2-Pole Continuous Duty, General Purpose AC Motors Application, 3 hp, 230/460 VAC, 8/4 A, 60 Hz Frequency, 3 ph ph, 3490 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145T Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.93 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Ultimate® premium efficient motors

Specifications

Amperage Rating:	8/4 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.93 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	3490 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
