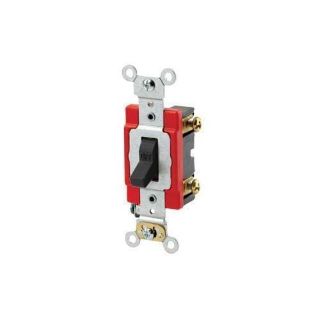

Picture of 1221-2E LEV
Actual Product May Vary From Image

1221-2E LEV

Leviton® 1221-2E Extra Heavy Duty AC Quiet Toggle Switch, 120/277 VAC, 20 A, SP Contact
Manufacturer: Leviton Manufacturing
Manufacturer part number: 1221-2E
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$9.83

Product Details

Brand Name

Leviton®

Type

Extra Heavy Duty

Alternate Supplier #

Grainger - 25MK58

Description

Leviton's Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Leviton® AC Quiet Toggle Switch, Extra Heavy Duty, 120/277 VAC, 20 A, SP Contact Configuration, 1 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Black, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.31 in W x 1.03 in D Dimensions

Application

Commercial Applications

Standards

RoHS Compliant | ANSI (C-73) | CSA C22.2 No. 111 (File 152105) Certified | NOM (057) | UL Fed Spec WS896E (File E7458) | UL 20 Listed | UL94-V2 Flammability Rated

Features

  • Heavy gauge copper alloy brush arm for superior performance
  • Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
  • Fully enclosed switch mechanism in rugged housing for strength, track and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wall box

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Black
Contact Configuration:SP
Contact Rating:1 hp at 120 VAC, 2 hp at 240 VAC
Country of Origin:US
Dimensions:4.06 in H x 1.31 in W x 1.03 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 60 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Number of Poles:1
Operating Cycles:50000 Cycles
Power Rating:800 W, 1000 VA
Terminal Type:Back/Side Wire
Voltage Rating:120/277 VAC
