122165.00 LEE

Name: 122165.00 LEE
Brand: Leeson Electric
SKU: 122165.00 LEE
Price: 1,088.33 USD
Availability: OutOfStock

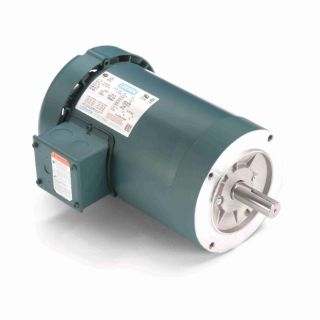

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

122165.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,088.33 / EA

Description

Brand Name

LEESON®

Type

6-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 6-Pole Continuous Duty, General Purpose AC Motors Application, 1 hp, 208 to 230/460 VAC, 3.8 to 3.8/1.9 A, 60 Hz Frequency, 3 ph, 1170 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.42 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Class B or F Insulation protects motor for a maximum temperature rating
Operational at 208-230/460 V at 60Hz Nameplate image may vary from actual product

Specifications

Amperage Rating:	3.8 to 3.8/1.9 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.42 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1170 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
