Actual Product May Vary From Image

122179.00 LEE

Name: 122179.00 LEE
Brand: Leeson Electric
SKU: 122179.00 LEE
Price: 933.73 USD
Availability: OutOfStock

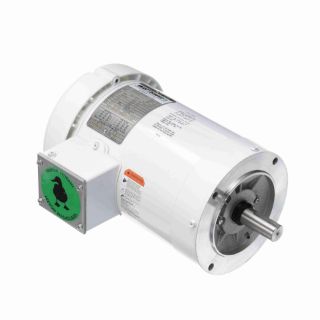

LEESON® Washguard® 122179.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 143TC Frame, 1760 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 122179.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$933.73

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, 1 hp, 208 to 230/460 VAC, 3.2/1.6 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.93 in L Dimensions

Application

Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

USDA approved epoxy painted motors
NEMA motors
Double lip contact seals and V-ring seals used for shaft seals

Specifications

Amperage Rating:	3.2/1.6 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.93 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	143TC
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
