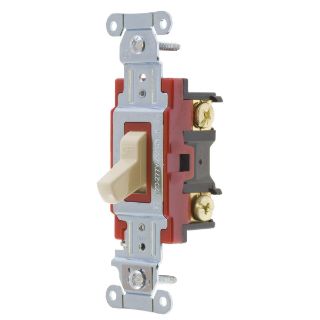

Actual Product May Vary From Image

1221AL HWD

Name: 1221AL HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 1221AL HWD
Availability: OutOfStock

Wiring Device-Kellems Hubbell-Pro™ 1221AL Heavy Duty AC Toggle Switch, 120/277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 1221AL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Heavy Duty

Description

Wiring Device-Kellems Hubbell-Pro™ AC Toggle Switch, Heavy Duty, 120/277 VAC, 20 A, 5540 W, 2-Position, 1 Pole, Toggle, NEMA WD-1 Enclosure, Threaded, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, Almond, Environmental Conditions: -40 to 75 deg C Operating Temperature, 1.49 in W x 1.75 in D x 4.18 in H

Application

Industrial and General Purpose Applications

Standards

RoHS Compliant | CSA Certified | Federal Specification WS896 | UL 20 Listed | UL94 V-2 Flammability Rating

Features

Steel, zinc plated bridge is corrosion-resistant
Color coded by amperage makes inspection easy even when installed
Strip gauge for accurate wiring
Minimum 4.8 times rated current for 100 cycles overload
Indoor dry unless protected by additional means
14 to 10 AWG solid and stranded copper wire terminal accommodations
1 hp at 120 VAC, 2 hp at 208/240/277 VAC
Nylon toggle
Positive snap action

Specifications

Actuator:	Toggle
Amperage Rating:	20 A
Color:	Almond
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	1.49 in W x 1.75 in D x 4.18 in H
Enclosure:	NEMA WD-1
Environmental Conditions:	-40 to 75 deg C Operating Temperature
Material:	Thermoset
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	5540 W
Terminal Type:	Back/Side Wire
Voltage Rating:	120/277 VAC
