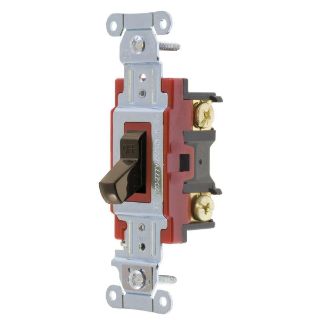

Actual Product May Vary From Image

1221B HWD

Name: 1221B HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 1221B HWD
Price: 5.72 USD
Availability: OutOfStock

Wiring Device-Kellems Hubbell-PRO™ 1221B Heavy Duty General Purpose Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 1221B

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5.72

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Heavy Duty General Purpose Standard

Alternate Supplier #

Grainger - 1XC19

Description

Wiring Device-Kellems Hubbell-PRO™ Toggle Switch, Heavy Duty General Purpose Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Screw Terminal, 50000 cycles Operating Cycles, Thermoset, Brown, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in

Application

Industrial and General Purpose Applications

Standards

CSA Certified | Federal Specification W-S-896 | NEMA WD1 | UL 20 Listed | RoHS Compliant

Features

Steel, zinc plated bridge is corrosion resistant
Color coded by amperage makes inspection easy even when installed
Strip gauge for accurate wiring
2 position
Indoor dry unless protected by additional means
14 to 10 AWG
1 hp at 120 VAC, 2 hp at 208/240/277 VAC
Nylon toggle
UL 94-V2 flammability
Back and side wire connection
5540 W power
Positive snap action

Specifications

Actuator:	Toggle
Amperage Rating:	20 A
Color:	Brown
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:	-40 to 75 deg C
Material:	Thermoset
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 cycles
Power Rating:	2 hp, 5540 W
Terminal Type:	Back/Side Wire
Voltage Rating:	120 to 277 VAC
