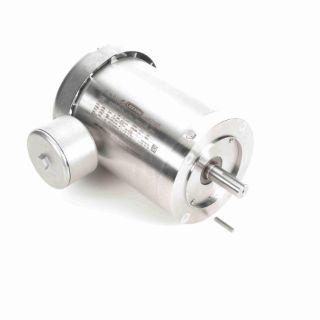

Actual Product May Vary From Image

122207.00 LEE

Name: 122207.00 LEE
Brand: Leeson Electric
SKU: 122207.00 LEE
Price: 480.14 USD
Availability: OutOfStock

LEESON® Washguard® 122207.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 143TC Frame, 3490 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 122207.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$480.14

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, Washdown Duty Motors Special Features, 1.5 hp, 208 to 230/460 VAC, 4.4 to 4/2 A, 60 Hz Frequency, 3 ph ph, 3490 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.25 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 12 in L Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

Washdown Duty Motors

Specifications

Amperage Rating:	4.4 to 4/2 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	143TC
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	3490 rpm
Temperature Rating:	40 deg C
Torque Rating:	2.25 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
