Actual Product May Vary From Image

122211.00 LEE

Name: 122211.00 LEE
Brand: Leeson Electric
SKU: 122211.00 LEE
Price: 2,039.62 USD
Availability: OutOfStock

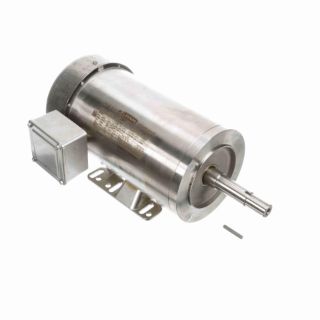

LEESON® Washguard® 122211.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 145JM Frame, 1745 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 122211.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,039.62

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, 2 hp, 208 to 230/460 VAC, 6 to 5.8/2.9 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145JM Frame, 0.88 in Dia x 4.21 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 6 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 17 in L x 7.22 in H Dimensions

Application

Pharmaceutical, Food Processing, Beverage Industries, Clean Room and Severe Chemical-Processing, Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

All exterior components are 300 series stainless steel
All sealing components are FKM for superior chemical resistance
Full fact nameplate is laser etched on the motor frame
End shields are O-ring sealed to the frame
Double lip shaft seals on both ends of TEFC motors
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
Exterior fastener use minimized reducing the number of entry points for moisture
Double sealed bearings are pre-lubricated with moisture resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion and ease to clean construction
New conduit box mounting system provides optimum sealing
Ease to clean construction

Specifications

Amperage Rating:	6 to 5.8/2.9 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	17 in L x 7.22 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145JM
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 4.21 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
