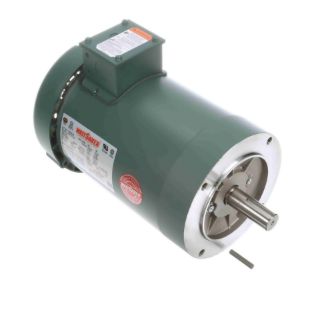

Actual Product May Vary From Image

122234.00 LEE

Name: 122234.00 LEE
Brand: Leeson Electric
SKU: 122234.00 LEE
Price: 1,234.00 USD
Availability: OutOfStock

LEESON® 122234.00 4-Pole Squirrel Cage Induction Run Unit Handling Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 230/460 V, 60 Hz, 3 ph Phase, 143TC Frame, 1760 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 122234.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,234.00

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Induction Run

Description

LEESON® Unit Handling Motor, 4-Pole Squirrel Cage Induction Run, Application Type: Unit Handling Motor, 1 hp, 230/460 V, 3.2/1.6 A, 60 Hz, 3 ph, 1760 rpm, 1 Speed, Totally Enclosed Fan Cooled, 143TC Frame, 7/8 in Dia x 2-1/4 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Round Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 12.92 in L

Standards

CE Certified | CSA Certified | UL Recognized

Features

Low profile conduit box at the 12:00 position
Base includes both 56H and 143-5T mounting holes and slots

Specifications

Amperage Rating:	3.2/1.6 A
Application Type:	Unit Handling Motor
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.92 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	143TC
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	7/8 in Dia x 2-1/4 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
