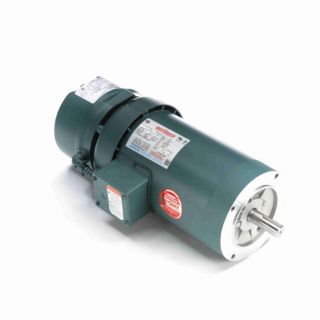

122252.00 LEE

Name: 122252.00 LEE
Brand: Leeson Electric
SKU: 122252.00 LEE
Price: 2,027.47 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

122252.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,027.47 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Brake Motors Application, Washdown Duty Motors Special Features, 1.5 hp, 208 to 230/460 VAC, 4.6 to 4.8/2.4 A, 60 Hz Frequency, 3 ph, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145 C Frame, 0.88 in Dia x 2 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 18.66 in L Dimensions

Application

Conveyors, Hoists, Packaging Equipment, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Washdown Duty Motors

Specifications

Amperage Rating:	4.6 to 4.8/2.4 A
Application Type:	Brake Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	18.66 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145 C
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
