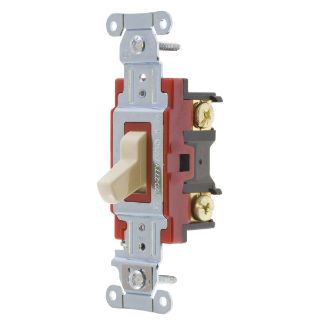

Actual Product May Vary From Image

1223AL HWD

Name: 1223AL HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 1223AL HWD
Availability: OutOfStock

Wiring Device-Kellems Hubbell-Pro™ 1223AL 2-Position 3-Way Heavy Duty Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W Power Rating

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 1223AL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position 3-Way Heavy Duty Standard

Description

Wiring Device-Kellems Hubbell-Pro™ Toggle Switch, 2-Position 3-Way Heavy Duty Standard, 120/277 VAC, 20 A, 5540 W Power, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Nylon/Thermoplastic, Almond, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.18 in L x 1.49 in W x 1.83 in H Dimensions

Application

Industrial and General Purpose Applications

Standards

UL 20 | UL94 V-2 Flammability Rating | CSA Certified | Federal Specification WS896 | NEMA WD1

Features

Steel, zinc plated bridge is corrosion resistant
Color coded by amperage makes inspection easy even when installed
Strip gauge for accurate wiring
Minimum 4.8 times rated current for 100 cycles overload
14 to 10 AWG solid and stranded copper wire size
1 hp at 120 VAC, 2 hp at 208/240/277 VAC
Nylon toggle
Positive snap action

Specifications

Actuator:	Toggle
Amperage Rating:	20 A
Color:	Almond
Contact Configuration:	2-Position/SPDT
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:	-40 to 75 deg C Operating Temperature
Material:	Nylon/Thermoplastic
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	2 hp, 5540 W
Terminal Type:	Back/Side Wire
Voltage Rating:	120/277 VAC
