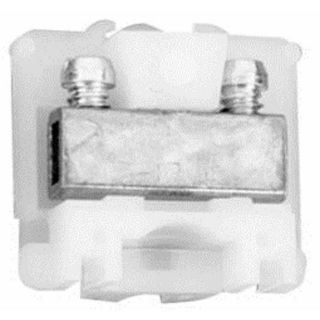

125 IDE

Features: Direct Mount, Flat Base; Miniature Blocks 300V; Nylon Housing; Tubular Clamp Contacts; Accepts #30 To #12 Awg Wire; Positive Stop; Quick Installation; Full Line Of Accessories Available; These Miniature Terminal Blocks Fit On A Much Smaller Channel To Save Valuable Panel Space Or Can Be Surface Mounted Directly To The Panel. Miniature Blocks Accept Wire As Large As 12 AWG; No Wire Crimping Required Clamp Contacts Hold Wire From 30 AWG To 12 AWG Better Than Crimp-On Terminals; Saves Installation Time And Cost Tubular Clamp Contacts Supplied With Captive Screws Backed Out; Nylon Housing For Rugged Applications; Positive Stop Prevents Wire From Being Inserted Too Far And Prevents Screw From Being Tightened On Insulation; Easy Access Contact Provides Safe, Reliable And Cost-Effective Connection; Quick Installation And Change Additional Sections May Be Added Or Removed Without Removing Channel Mounting Screw; Matte-Finish Area For Marking Directly On Block; Temperature Rating: 125 DEG C; Length: 5/16 IN Wire Strip; Torque Rating: 6-9 IN-LB; Flammability: UL94V2
