12536OT3E404TS-G WEG

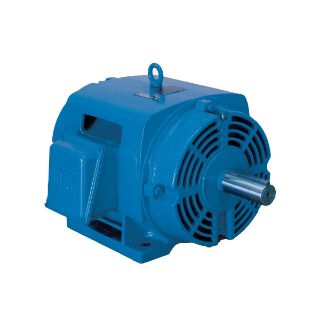

Picture of 12536OT3E404TS-G WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
12536OT3E404TS-G
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 113856653

Description

WEG AC Motor, Air Handling Motors, General Purpose HVAC Motors Application, 125 hp, 230/460 VAC, 133 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, 404/5TS Frame, 1.15 Service Factor, Ball Bearing, Footed Mounting, Insulation Class: Class F, 31.141 in L Dimensions

Application

HVAC Applications

Features

  • High starting torque
  • New ventilation system for improved thermal performance
  • Robust design
  • Regreasable bearings
  • Motor frame painting system 500 hr salt spray resistant

Specifications

Amperage Rating:133 A
Application Type:Air Handling Motors, General Purpose HVAC Motors
Bearing Type:Ball
Dimensions:31.141 in L
Enclosure Type:Open Drip-Proof
Frame:404/5TS
Frequency Rating:60 Hz
Horsepower:125 hp
Insulation Class:Class F
Mounting Type:Footed
Phase:3
Service Factor:1.15
Speed:3600 rpm
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
125 HP
Type
ODP – Three-Phase – Foot Mount
