1254-R LEV

Name: 1254-R LEV
Brand: Leviton Manufacturing
SKU: 1254-R LEV
Availability: OutOfStock

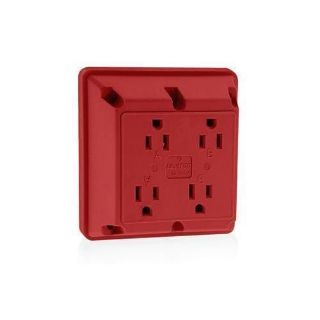

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

1254-R

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

1-Phase 4-in-1 Extra Heavy Duty Grounding Quadruplex

Alternate Supplier #

Grainger - 25ML35

Description

Leviton® extra heavy duty hospital grade receptacles meet or exceed the performance requirements for the coveted UL hospital grade listing. They are offered in standard, tamper resistant, power indication, illuminated and isolated ground versions of Leviton® conventional and Decora® Plus duplex configurations. Leviton® also offers a version specifically designed for use in MRI and other applications exposed to high magnetic fields.

Leviton®, 1254-R, Straight Blade Receptacle, 1-Phase 4-in-1 Extra Heavy Duty Grounding Quadruplex, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Screw Terminal, Nylon, Red, 4.5 in L x 4.5 in W x 1.15 in D Dimensions

Standards

Features

Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required
Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
Easy-to-read voltage and amperage rating molded onto smooth face
T-type triple wipe bronze contacts for maximum performance
Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
#8 terminal screws accept up to no 12 AWG solid or stranded copper wire
Termination anchor holes for easy conductor wiring
Exclusive shield wall design protects ground connection from contact with live circuit conductors
A and B molded on face and back for easy identification of receptacle pairs for split circuit conversion
Convenient built-in strip gauge
Wallbox mounting
Grounding
1-phase
2000 VAC minimum dielectric strength
Industrial series extra heavy duty specification grade
Galvanized steel strap
4-in-1 receptacle
Screw terminal connection
14 to 12 AWG wire terminal

Specifications

Amperage Rating:	15 A
Color:	Red
Country of Origin:	MX
Dimensions:	4.5 in L x 4.5 in W x 1.15 in D
Grade:	Commercial
Horsepower:	1/2 hp
Material:	Nylon
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
