Actual Product May Vary From Image

125933 DOD

Name: 125933 DOD
Brand: Dodge
SKU: 125933 DOD
Price: 465.08 USD
Availability: OutOfStock

P2B-SCM-70M

Manufacturer: Dodge

Manufacturer part number: 125933

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$465.08

Qty:

Product Details

Ball Bearing Series:	215 Series
Base to Center Height:	3.5000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	9.5000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	8.5000
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.3300
Bore Length (Unit):	INCH
Dynamic Load Capacity:	14872
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Cast Iron

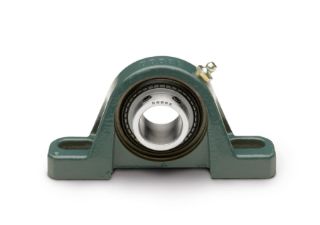

Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1750
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	70.0000
Shaft Diameter (Unit):	MILLIMETER
Standoff Housing:	No
Static Load Capacity:	11108
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-50,TS-350
