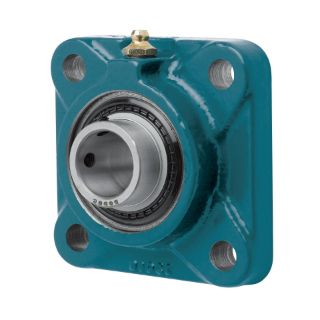

Actual Product May Vary From Image

126192 DOD

Name: 126192 DOD
Brand: Dodge
SKU: 126192 DOD
Price: 225.31 USD
Availability: InStock

F4B-SCM-200

Manufacturer: Dodge

Manufacturer part number: 126192

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$225.31

Qty:

Product Details

Specifications

Ball Bearing Series:	211 Series
Bearing Type:	Ball
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	5.1300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	5.1300
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.2200
Bore Length (Unit):	INCH
Dynamic Load Capacity:	9755
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	2.0000
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	6588
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No

Resources

Tech Bulletin Engineering Drawing Installation
