127686 DOD

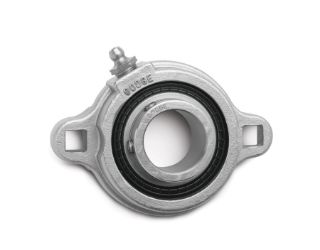

Picture of 127686 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
127686
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$285.67 / EA

Description

Specifications

Ball Bearing Series:207 Series
Bearing Type:Ball
Bolt Diameter:0.5000
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):5.1200
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):5.1200
Bolt to Bolt (Min) (Unit):INCH
Bore Length:1.6200
Bore Length (Unit):INCH
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:MobilGrease FM222
Housing Construction:Solid
Housing Material:Stainless Steel
Housing Type:Two-Bolt Flange
Insert Material:Plated Steel
Lubrication:Grease
Maximum Speed:3500
Maximum Speed (Unit):RPM
Seal Type:Triple-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Setscrew
Shaft Diameter:1.4375
Shaft Diameter (Unit):INCH
Standoff Housing:No
Suitable for High Temperature:No
Suitable For Washdown:Yes

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Baldor-Dodge
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
1 7/16 in
