128160CD-2 TKN

Product Details

Manufacturer:
Manufacturer part number:
128160CD-2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Non-Flanged

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With the ability to support high radial and axial loads, high-performance Timken® double row tapered roller bearing components are engineered to provide the greatest durability in the most compact space.

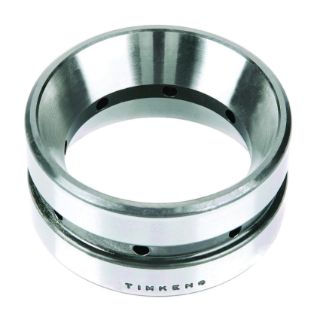

Timken®, 128160CD-2, Bearing Cup, Non-Flanged, Series: 128000, 16 in OD, 6 in Cup Width, 5-7/8 in Bearing Width, 0.06 in Maximum House Fillet Radius, 15.13 in Frontface Diameter Maximum House Shoulder, For Use With: Type TDO Double Row Tapered Roller Bearing, Steel

Standards

ABMA Standard

Features

  • Double outer (cup) rings should be replaced at the same time as the inner (cone) rings to maximize reliability and life
  • Ring has oil holes and groove, one hole is counter bored for locking pin
  • Class 2 standard precision level

Specifications

Bearing Width:5-7/8 in
Cup Width:6 in
Material:Steel
Maximum House Fillet Radius:0.06 in
Maximum House Shoulder Diameter:15.13 in Frontface
Outside Diameter:16 in
Series:128000
Suitable For Use With:Type TDO Double Row Tapered Roller Bearing

Products Specifications

Brand Name
TIMKEN CORPORATION
