12BDGHA6.3 BSF

Name: 12BDGHA6.3 BSF
Brand: Bussmann
SKU: 12BDGHA6.3 BSF
Availability: OutOfStock

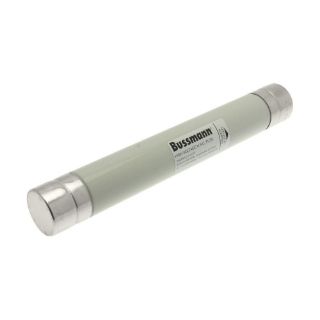

Bussmann 12BDGHA6.3 BDGHA Type A British Standard Medium Voltage Air Fuse Link, 6.3 A, 12 kV

Manufacturer: Bussmann

Manufacturer part number: 12BDGHA6.3

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type A British Standard Medium Voltage

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Air Fuse Link, Type A British Standard Medium Voltage, Series: BDGHA, Non-Indicating, 6.3 A, 12 kV, Bolted-On Terminal, Stud Mounting, 50.8 mm Dia x 359 mm L Body

Application

Primary Side Transformer Protection, Oil Filled Fuse Switch Combination Unit, Fuse Bases and Fuse Switches

Standards

BS 2962-1

Features

Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained

Specifications

Amperage Rating:	6.3 A
Body Size:	50.8 mm Dia x 359 mm L
Country of Origin:	GB
Indicating/Non-Indicating:	Non-Indicating
Mounting Type:	Stud
Series:	BDGHA
Terminal Type:	Bolted-On
Voltage Rating:	12 kV
