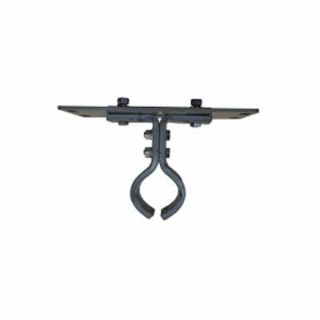

Martin 12CH2206 Conveyor Hanger, 220 Style, 12 in Dia Conveyor, 3 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 12CH2206
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$199.04

Product Details

Brand Name

Martin

Description

No. 220 hangers are designed for mount on top of the trough flanges and may be used where dust-tight or weather-proof operation is not required. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.
Martin Conveyor Hanger, 220 Style, 12 in Conveyor Diameter, 3 in Coupling, 2-1/2 in Mounting Hole Center, 1/2 x 2 in Bolt, 17-1/2 in Top Frame Length, 50 in Top Frame Width, 3/8 in Top Frame Thickness, 4 Mounting Bolts, 9/16 x 1-5/16 in Slot, Steel

Standards

CEMA Standard | PTDA Certified

Specifications

Bolt Size:1/2 x 2 in
Conveyor Diameter:12 in
Country of Origin:US
Coupling Size:3 in
Material:Steel
Mounting Hole Center:2-1/2 in
Number of Mounting Bolts:4
Slot Size:9/16 x 1-5/16 in
Style:220
Top Frame Length:17-1/2 in
Top Frame Thickness:3/8 in
Top Frame Width:50 in
