12CH2266 MSG

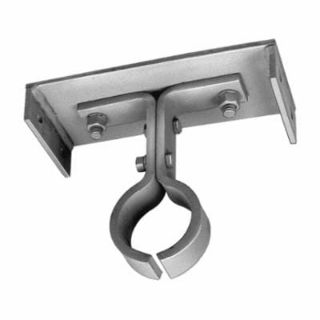

Martin 12CH2266 Conveyor Hanger, 226 Style, 12 in Dia Conveyor, 3 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 12CH2266
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$199.04

Product Details

Brand Name

Martin

Description

No. 226 hangers are designed for flush mounting inside the trough permitting dust-tight or weather-proof operation. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.
Martin Conveyor Hanger, 226 Style, 12 in Conveyor Diameter, 3 in Coupling, 2-1/2 in Mounting Hole Center, 1/2 x 1-3/4 in Bolt, 13 in Top Frame Length, 50 in Top Frame Width, 3/8 in Top Frame Thickness, 4 Mounting Bolts, 9/16 x 1-5/16 in Slot, Steel

Standards

CEMA Standard | PTDA Certified

Specifications

Bolt Size:1/2 x 1-3/4 in
Conveyor Diameter:12 in
Country of Origin:US
Coupling Size:3 in
Material:Steel
Mounting Hole Center:2-1/2 in
Number of Mounting Bolts:4
Slot Size:9/16 x 1-5/16 in
Style:226
Top Frame Length:13 in
Top Frame Thickness:3/8 in
Top Frame Width:50 in
