Actual Product May Vary From Image

12CH306 MSG

Name: 12CH306 MSG
Brand: Martin Sprocket & Gear
SKU: 12CH306 MSG
Price: 221.19 USD
Availability: OutOfStock

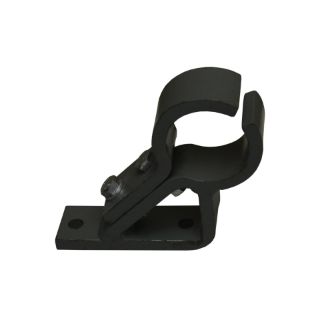

Martin 12CH306 Conveyor Hanger, 30 Style, 12 in Dia Conveyor, 3 in Coupling

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 12CH306

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$221.19

Qty:

Product Details

Brand Name

Martin

Description

No. 30 hangers are designed for side mounting within the conveyor trough on the non-carrying side and permit a minimum of obstruction of material flow. Available with friction type bearing.

Martin Conveyor Hanger, 30 Style, 12 in Conveyor Diameter, 3 in Coupling, 5-1/2 in Mounting Hole Center, 3/8 x 2 in Bolt, 2 in Top Frame Width, 5/8 in Top Frame Thickness, 2 Mounting Bolts, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	3/8 x 2 in
Conveyor Diameter:	12 in
Country of Origin:	US
Coupling Size:	3 in
Material:	Steel
Mounting Hole Center:	5-1/2 in
Number of Mounting Bolts:	2
Style:	30
Top Frame Thickness:	5/8 in
Top Frame Width:	2 in
