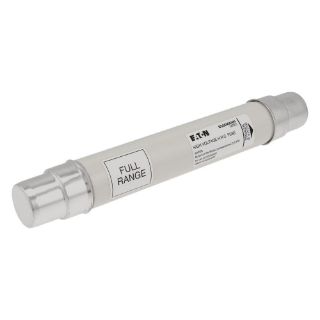

Actual Product May Vary From Image

12FDLSJ31.5 BSF

Name: 12FDLSJ31.5 BSF
Brand: Bussmann
SKU: 12FDLSJ31.5 BSF
Availability: OutOfStock

Bussmann 12FDLSJ31.5 FDLSJ Medium Voltage Type F Current Limiting Fuse Link, 31.5 A, 12 kV, 50 kA Interrupt, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 12FDLSJ31.5

Availability: Expected Leadtime 46 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Medium Voltage Type F

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Current Limiting Fuse Link, Medium Voltage Type F, Series: FDLSJ, Indicating/Non-Indicating: Non-Indicating, 31.5 A, 12 kV, 50 kA Interrupt, Bolt-On Mount, Body Type: Cartridge, 51 mm Dia x 292 mm L Body Size

Application

Primary Side Transformer Protection, Oil Filled Fuse Switch Combination Unit, Fuse Bases Without Instantaneous Striker Tripping and Fuse Switches

Standards

IEC 60282-1 | DIN 43625 | VDE 0670 Part 4 | VDE 0670 part 402

Features

Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
Full range MV fuse links can interrupt any current below the rated breaking capacity

Specifications

Amperage Rating:	31.5 A
Body Size:	51 mm Dia x 292 mm L
Body Type:	Cartridge
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kA
Mounting Type:	Bolt-On
Series:	FDLSJ
Voltage Rating:	12 kV
